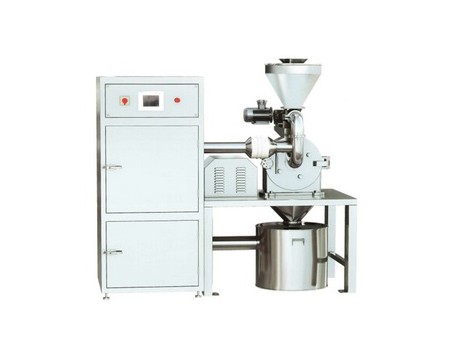

Low-temperature and dust-free pulverizer

It’s suitable for heat sensitive materials smash. The main measures are that when pulverizing materials, supplying the cold air at the same time, and control the speed of feeding by an adjustable, seed control screw feeder, thus to make sure that the temperature of crushed material is lower than set value in process of pulverizing.

Production capacity (kg/h)

40-200

Fineness of pulverization (mesh)

80-120

Granularity of feed stock (mm)

< Ø 12

Diameter of movable fluted disc (mm)

Ø 300

Speed of main shaft (rpm)

3800

Motor power (kW)

7.5

Overall dimension   (L×W×H)   (mm)

2000х600х1800
