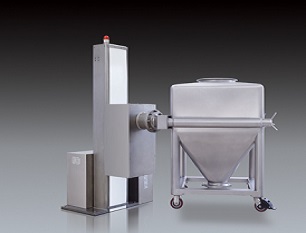

HLT series lifting type hopper mixer
HLT series lifting type hopper mixer is extensively used for mixing dry powder with dry powder or dry powder with granules in the process of diversified solid preparation production in the pharmaceutical industry.
|
Model |
HLT-100 |
HLT-200 |
HLT-300 |
HLT-400 |
HLT-600 |
HLT-1500 |
|
Max.volume of hopper (L) |
100 |
200 |
300 |
400 |
600 |
1500 |
|
Max.charge volume (L) |
80 |
160 |
240 |
320 |
480 |
1200 |
|
Max.charge weight (kg) |
50 |
100 |
150 |
200 |
300 |
750 |
|
Main shaft speed (rpm) |
3-20 |
3-20 |
3-20 |
3-15 |
3-15 |
3-10 |
|
Total power of motor (kW) |
1.5 |
3 |
3 |
5.2 |
5.2 |
6.2 |
|
Weight (kg) |
600 |
800 |
1000 |
1200 |
1400 |
2000 |
|
Overall dimension (L×W×H) (mm) |
2300х1500х1500 |
2500х1800х2000 |
2500х1900х2100 |
2600х2100х2300 |
2800х2300х2500 |
3200х2800х2800 |
