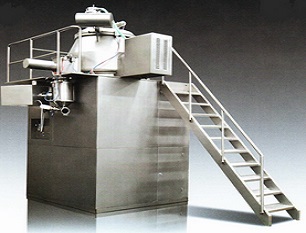

High Shear Mixer Granulator
High shear mixer granulator is used for mixing and granulation. It’s the major processing equipment in solid dosage production line.
|
Model |
GL10 |
GL25 |
GM50 |
GM100 |
GM-150 |
GM200 |
GM300 |
|
Volume (L) |
10 |
25 |
50 |
100 |
150 |
200 |
300 |
|
Working volume (L) |
4-8 |
10-20 |
20-40 |
40-80 |
60-120 |
80-160 |
120-140 |
|
Mixing speed (rpm) |
10-600 |
50-420 |
50-355 |
50-287 |
50-240 |
50-223 |
50-200 |
|
Mixing power (kW) |
1.1 |
2.2 |
5.5 |
11 |
15 |
18.5 |
22 |
|
Chopper speed (rpm) |
1000-2500 |
1000-2500 |
1000-2500 |
1000-2500 |
1000-2500 |
1000-2500 |
1000-2000 |
|
Chopper power (kW) |
0.75 |
1.1 |
1.5 |
3 |
3 |
4 |
5.5 |
|
Air consumption (m3/min) |
0.03 |
0.05 |
0.05 |
0.1 |
0.1 |
0.2 |
0.2 |
|
Overall dimension (LхHхD), mm |
1300X1350X700 |
1800X1600X800 |
1950X1700X800 |
2000X1950X1100 |
2500X3100X2000 |
3000X3250X2300 |
2400X3200X2800 |
|
Weight (kg) |
300 |
400 |
800 |
1100 |
1600 |
2500 |
2700 |
|
Model |
GM400 |
GM500 |
GM600 |
GM800 |
GM1000 |
GM1200 |
|
|
Volume (L) |
400 |
500 |
600 |
800 |
1000 |
1200 |
|
|
Working volume (L) |
160-320 |
200-400 |
240-480 |
320-640 |
400-800 |
480-960 |
|
|
Mixing speed (rpm) |
50-200 |
30-172 |
30-162 |
20-148 |
20-140 |
20-133 |
|
|
Mixing power (kW) |
30 |
37 |
45 |
55 |
55 |
75 |
|
|
Chopper speed (rpm) |
1000-2000 |
1000-2000 |
1000-2000 |
1000-1500 |
1000-1500 |
1000-1500 |
|
|
Chopper power (kW) |
5.5 |
7.5 |
7.5 |
11 |
15 |
15 |
|
|
Air consumption (m3/min) |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
|
Overall dimension (LхHхD), mm |
3300X3600X2800 |
3500X3700X3100 |
3600X4000X4100 |
3600X4900X3500 |
3700X5300X3500 |
3700X5600X3700 |
|
|
Weight (kg) |
3000 |
4100 |
5300 |
5700 |
6000 |
6700 |
