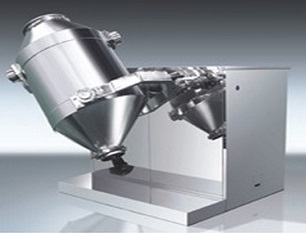

HD series multi-directional motions mixer
This machine is used for mixing powder and granules. The mixing barrel is supported by the driving and driven shafts which are crossed in space, so the barrel is turning in three-dimensional space. Due to the working principle of the machine materials reach an ideal mixing within a short time. It is the most effective model of the mixer.
|
Model |
HD-5 |
HD-20 |
HD-50 |
HD-100 |
HD-200 |
|
Volume of mixing barrel (L) |
5 |
20 |
50 |
100 |
200 |
|
Max. charge volume (L) |
4 |
17 |
40 |
85 |
170 |
|
Max.charge weight ( kg) |
4 |
15 |
40 |
80 |
100 |
|
Main shaft speed (rpm) |
20 |
20 |
17 |
14 |
14 |
|
Motor power (kW) |
0.75 |
0.75 |
1.1 |
2.2 |
3 |
|
Weight (kg) |
90 |
100 |
200 |
650 |
900 |
|
Overall dimension (L×W×H) (mm) |
900х700х650 |
970х780х700 |
1200х1100х1200 |
1360х1500х1530 |
1800х1600х1700 |
|
Model |
HD-400 |
HD-600 |
HD-800 |
HD-1000 |
HD-1500 |
|
Volume of mixing barrel (L) |
400 |
600 |
800 |
1000 |
1500 |
|
Max. charge volume (L) |
340 |
500 |
680 |
850 |
1275 |
|
Max.charge weight ( kg) |
200 |
300 |
400 |
500 |
750 |
|
Main shaft speed (rpm) |
12 |
12 |
10 |
10 |
10 |
|
Motor power (kW) |
4 |
5.5 |
7.5 |
7.5 |
11 |
|
Weight (kg) |
1350 |
1550 |
2500 |
2650 |
4000 |
|
Overall dimension (L×W×H) (mm) |
2200х1900х1850 |
2400х2100х2050 |
2600х2500х2550 |
2800х2600х2800 |
3400х3200х3100 |
