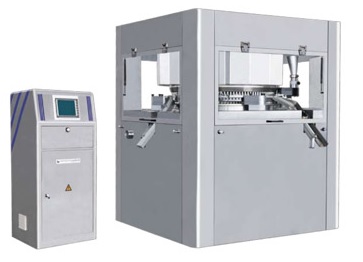

GZPT-series Automatic Triple Rotary High Speed Tablet Press Machine (76,95,113,122)
Press machine is used for tablet production in pharmaceutical industry.
|
Model |
GZPT-76 |
GZPT-95 |
GZPT-113 |
GZPT-122 |
|
Number of stations |
76 |
95 |
113 |
122 |
|
Tooling type |
D |
B |
BB |
BBS |
|
Production capacity (tab/hour) |
697000 |
872000 |
1037000 |
1119000 |
|
Main motor power (kW) |
18,5 |
|||
|
Main pressure |
100 kN |
|||
|
Pre-pressure |
100 kN |
|||
|
Max tablet diameter (mm) |
25 |
16 |
13 |
11 |
|
Max length of irregular tablet (mm) |
25 |
19 |
16 |
13 |
|
Max filling depth, mm |
20 |
20 |
16 |
16 |
|
Max tablet thickness, mm |
10 |
10 |
8 |
8 |
|
Weight, kg |
8000 |
|||
|
Overall dimension, mm |
1720 X 1720 X 2182 |
|||
