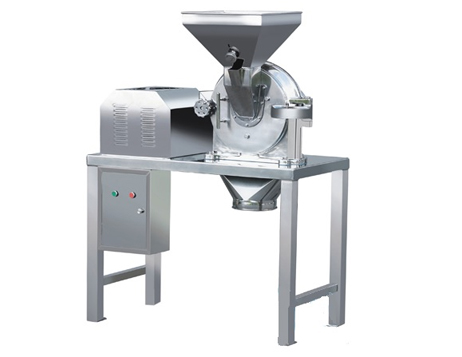

FG-300 High-Efficiency pulverizer
The machine is used for pulverizing dry brittle materials. It has simple and compact structure. It is only need to change sieve mesh in different mesh number, then the required fineness can be reached.
|
Model |
FG-300 |
|
Production capacity (kg/h) |
100-200 |
|
Fineness of pulverization (mesh) |
6-80 |
|
Granularity of feed stock (mm) |
< Ø 12 |
|
Diameter of movable fluted disc (mm) |
Ø 300 |
|
Speed of main shaft (rpm) |
3800 |
|
Motor power (kW) |
5.5 |
|
Overall dimension (L×W×H) (mm) |
1100х600х1480 |
