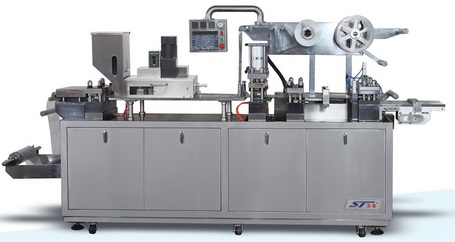

Blister packaging machine DPB-320
|
Cutting Frequency (Times/min) |
6-50 |
|
Max. Production Capacity（pcs/h） |
40000-290000 |
|
Max. Forming Area and Depth (mm) |
310×150×26（standard: 310×150×14） |
|
Travel Range (mm) |
40-160 (Can be manufactured as user’s requirements) |
|
Air Pressure (Mpa) |
0.4-0.7 (Air Supply: 0.35m3/min) |
|
Standard Blister size (mm) |
80×57 (Can be manufactured as user’s requirements) |
|
Power |
380V/220V 50HZ 6,2kW |
|
Main Motor Power (KW) |
1,5 |
|
PVC Rigid Sheet (mm) |
0.25-0.5×320 |
|
PTP Aluminum Foil (mm) |
0.02-0.035×320 |
|
Dialysis Paper (mm) |
50-100g×320 |
|
Mould Cooling |
Tap Water or Circulating Water |
|
Overall Dimensions (mm) |
3300×775×1600（Length×Width×Height） |
|
Weight (kg) |
2000 |
