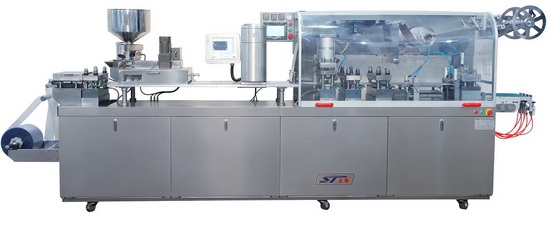

Blister packaging machine DPB—260D
|
Cutting Frequency (Times/min) |
60 (Al-plastic) 40 (Al-Al) |
|
Max. Production Capacity（pcs/h） |
Al-plastic≤300000 Al-Al≤100000 |
|
Max. Forming Area and Depth (mm) |
250×180×26（standard: 250×180×14） |
|
Travel Range (mm) |
0-180（Precision leadscrew） 0-220（Rubber press roller） |
|
Air Pressure (Mpa) |
0.4-0.6 (Air Supply: 0.36m3/min) |
|
Standard Blister size (mm) |
80×57 (Can be manufactured as user’s requirements) |
|
Power |
380V/220V 50HZ 6,2kW |
|
Main Motor Power (KW) |
1,5 |
|
PVC Rigid Sheet (mm) |
0.15-0.5×260 |
|
PTP Aluminum Foil (mm) |
0.02-0.035×260 |
|
Dialysis Paper (mm) |
50-100g×260 |
|
Mould Cooling |
Tap Water or Circulating Water |
|
Overall Dimensions (mm) |
3900×730×1600（Length×Width×Height） |
|
Weight (kg) |
1600 |
