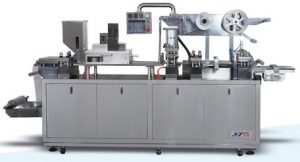

Blister packaging machine DPB-250
|
Cutting Frequency (Times/min) |
6-50 |
|
230000 (Al–plastic) 110000 (Al–Al) |
|
|
Max. Forming Area and Depth (mm) |
240×150×26（standard: 240×150×14） |
|
Travel Range (mm) |
40-160 (Can be manufactured as user’s requirements) |
|
Air Pressure (Mpa) |
0.4-0.6 (Air Supply: 0.35m3/min) |
|
Standard Blister size (mm) |
80×57 (Can be manufactured as user’s requirements) |
|
Power |
380V/220V 50HZ 6,2kW |
|
Main Motor Power (KW) |
1,5 |
|
PVC Rigid Sheet (mm) |
0.25-0.5×250 |
|
PTP Aluminum Foil (mm) |
0.02-0.035×250 |
|
Dialysis Paper (mm) |
50-100g×250 |
|
Mould Cooling |
Tap Water or Circulating Water |
|
Overall Dimensions (mm) |
3000×730×1600（Длина×Ширина×Высота） |
|
Weight (kg) |
1600 |
