Bin

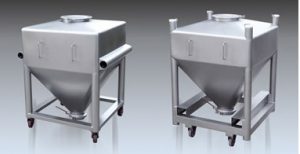

Bin is used for storage, transferring and mixing of bulk material on their processing. LDF series bin is applied to HDF series bin blender, HL series bin is applied to the HLT series post bin blender, and DL series bin is ideal for the transferring and storage of material.

Model	Volume (L)	Width (mm)	Height (mm)	Inlet port (mm)	Outlet port (mm)	Weight (kg)
LDF-400	403	800	1233	380	200	84
LDF-600	610	1000	1284	380	200	125
LDF-800	810	1000	1484	380	200	140
LDF-1000	1068	1200	1585	380	250	175
LDF1200	1222	1200	1725	380	250	190
LDF-1500	1525	1200	1935	380	250	212
LDF-1800	1817	1200	2075	380	250	223
LDF-2000	2019	1200	2215	380	250	239

Model	Volume (L)	Width (mm)	Height (mm)	Inlet port (mm)	Outlet port (mm)	Weight (kg)
HL-100	104	500	858	200	150	53
HL-200	205	700	963	380	200	100
HL-300	303	700	1163	380	200	112
HL-400	403	800	1233	380	200	132
HL-600	629	900	1424	380	200	150
HL-800	810	1000	1484	380	200	165
HL-1000	1014	1100	1544	380	200	209
HL-1200	1208	1100	1704	380	200	217
HL-1500	1511	1100	1954	380	200	239

Model	Volume (L)	Width (mm)	Height (mm)	Inlet port (mm)	Outlet port (mm)	Weight (kg)
DL-150	156	700	863	380	200	78
DL-200	205	700	963	380	200	80
DL-300	306	800	1083	380	200	106
DL-400	403	800	1233	380	200	112
DL-500	510	1000	1184	380	200	114
DL-600	610	1000	1284	380	200	120
DL-800	810	1000	1484	380	200	135
DL-1000	1049	1200	1484	380	200	156
